Seamless Alloy Steel Tube

These Alloy steel pipes & tubes are used in different application industry like oil refineries, chemical plants, fertilizers plants, petrochemicals plants and sugar mills etc.

Commodity name： Seamless Alloy Steel Tube

Category:

Seamless Pipe

sales01@sdsxymetal.com

+86 17865881556

WeChat

Get a Quote

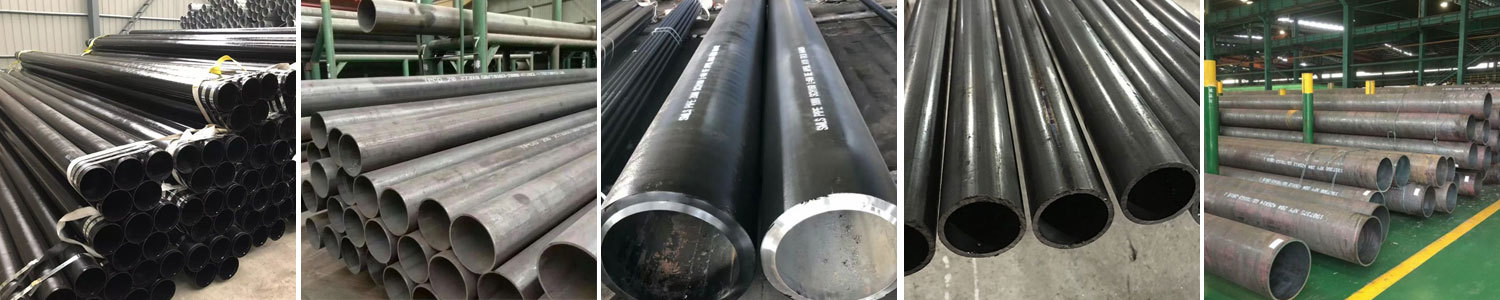

Seamless Alloy Steel Tube

Type: Alloy Pipe, Alloy Tube, Alloy Steel Pipe, Alloy Steel Tube
Application: In Petroleum, Aerospace, Chemical, Power, Boilers, Military Industry

Specification: Outside Diameter: 1/8'' ~ 26''
Wall Thickness: SCH 30, 30, 40, 60, 80, 120, 140, 160, XS, XXS, STD
Length: Single Random, Double Random, Cut Length max to 23m
Standard & Grade: ASTM A333, A335 P5/P9/P11/P22/P91, DIN 17175, JIS G3458

End: Plain End, Beveled End, Thread End

Packing: Bundled with Hemp Rope/In Bulk
Alloy pipe is a kind of seamless steel pipe, its performance is much higher than that of general seamless steel pipe, because this type of steel pipe contains more Cr, its high temperature resistance, low temperature resistance, corrosion resistance performance is much better than other Steel pipe , so the alloy pipe is widely used in petroleum, aerospace, chemical, electric power, boiler, military and other industries.

Product	SEAMLESS / ERW / SAW ALLOY STEEL PIPE
Dimension	6 mm - 1080 mm
Thickness	1mm - 135 mm
Length	3 m - 12 m or according to the requirements of clients
Standard	ASTM GB DIN
Steel grade	A106/53/179/214/192/210 A/B/C ST37.2/35.4/35.8/52/52.3/52.4/42/45 10# 20# 45# P2, P12, P11, P22, P5, P9, P91 T2, T11,T5,T9,T22, 4140, 12CrMo, 15CrMo, 12Cr2Mo, 1Cr5Mo, 2CrMo4, 1Cr9Mo, 10CrMo910, etc.
Trade terms	FOB/CIF/CFR
Payment terms	T/T, L/C
Delivery port	Tianjin, China
Delivery time	10 or according to the real quantity of the tubes
Surface treatment	Black painting Varnish painting 3PE Hot galvanized or other coating according to your requirements Bare tube
End of tubes	Beveled, plain, thread, plastic caps
Inspection	Ultrasonic examination, eddy inspection, hydrosttic testing etc.
Package	Bundles, lossen or according to your requirements
Certificate	API 5L/5CT, ISO, PED etc.

Technical data

Chemical Composition

C, %	Mn, %	P, %	S, %	Si, %	Cr, %	Mo, %
0.05-0.15	0.30-0.60	0.025 max	0.025 max	0.50-1.00	1.00-1.50	0.44-0.65

Mechanical Properties

Tensile Strength, MPa	Yield Strength, MPa	Elongation, %
415 min	205 min	30 min

Outside Diameter & Tolerance

ASTM A450	Hot rolled	Outside Diameter, mm	Tolerance, mm
		OD≤101.6	+0.4/-0.8
		101.6＜OD≤190.5	+0.4/-1.2
		190.5＜OD≤228.6	+0.4/-1.6
	Cold Drawn	Outside Diameter, mm	Tolerance, mm
		OD＜25.4	±0.10
		25.4≤OD≤38.1	±0.15
		38.1＜OD＜50.8	±0.20
		50.8≤OD＜63.5	±0.25
		63.5≤OD＜76.2	±0.30
		76.2≤OD≤101.6	±0.38
		101.6＜OD≤190.5	+0.38/-0.64
		190.5＜OD≤228.6	+0.38/-1.14
ASTM A530 & ASTM A335	NPS	Outside Diameter, inch	Tolerance, mm
		1/8≤OD≤1-1/2	±0.40
		1-1/2＜OD≤4	±0.79
		4＜OD≤8	+1.59/-0.79
		8＜OD≤12	+2.38/-0.79
		OD>12	±1%

Wall thickness & Tolerance

ASTM A450	Hot rolled	Outside Diameter, mm	Tolerance, %
		OD≤101.6, WT≤2.4	+40/-0
		OD≤101.6, 2.4＜WT≤3.8	+35/-0
		OD≤101.6, 3.8＜WT≤4.6	+33/-0
		OD≤101.6, WT>4.6	+28/-0
		OD>101.6, 2.4＜WT≤3.8	+35/-0
		OD>101.6, 3.8＜WT≤4.6	+33/-0
		OD>101.6, WT>4.6	+28/-0
	Cold Drawn	Outside Diameter, mm	Tolerance, %
		OD≤38.1	+20/-0
		OD>38.1	+22/-0
ASTM A530	NPS	Outside Diameter, inch	Tolerance, %
		1/8≤OD≤2-1/2	+20.0/-12.5
		3≤OD≤18, WT/OD≤5%	+22.5/-12.5
		3≤OD≤18, WT/OD>5%	+15.0/-12.5
		OD≥20, WT/OD≤5%	+22.5/-12.5
		OD≥20, WT/OD>5%	+15.0/-12.5

Standard
ASTM A335--for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service
ASTM A519--for Seamless Carbon and Alloy Steel Mechanical Tubing
ASTM A213--for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM ASME (S)A-335/(S)A-335M Grade and Chemical Composition

Grade	UNS	C≤	Mn	P≤	S≤	Si≤	Cr	Mo
P1	K11522	0.10~0.20	0.30~0.80	0.025	0.025	0.10~0.50	-	0.44~0.65
P2	K11547	0.10~0.20	0.30~0.61	0.025	0.025	0.10~0.30	0.50~0.81	0.44~0.65
P5	K41545	0.15	0.30~0.60	0.025	0.025	0.50	4.00~6.00	0.44~0.65
P5b	K51545	0.15	0.30~0.60	0.025	0.025	1.00~2.00	4.00~6.00	0.44~0.65
P5c	K41245	0.12	0.30~0.60	0.025	0.025	0.50	4.00~6.00	0.44~0.65
P9	S50400	0.15	0.30~0.60	0.025	0.025	0.50~1.00	8.00~10.00	0.44~0.65
P11	K11597	0.05~0.15	0.30~0.61	0.025	0.025	0.50~1.00	1.00~1.50	0.44~0.65
P12	K11562	0.05~0.15	0.30~0.60	0.025	0.025	0.50	0.80~1.25	0.44~0.65
P15	K11578	0.05~0.15	0.30~0.60	0.025	0.025	1.15~1.65	-	0.44~0.65
P21	K31545	0.05~0.15	0.30~0.60	0.025	0.025	0.50	2.65~3.35	0.80~1.60
P22	K21590	0.05~0.15	0.30~0.60	0.025	0.025	0.50	1.90~2.60	0.87~1.13
P91	K91560	0.08~0.12	0.30~0.60	0.020	0.010	0.20~0.50	8.00~9.50	0.85~1.05
P92	K92460	0.07~0.13	0.30~0.60	0.020	0.010	0.50	8.50~9.50	0.30~0.60

Note: (S)A335 P91 other chemical composition are : V 0.18~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.06~0.10
(S)A335 P92 other chemical composition are : V 0.15~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.04~0.09; W 1.5~2.00 ; B 0.001~0.006

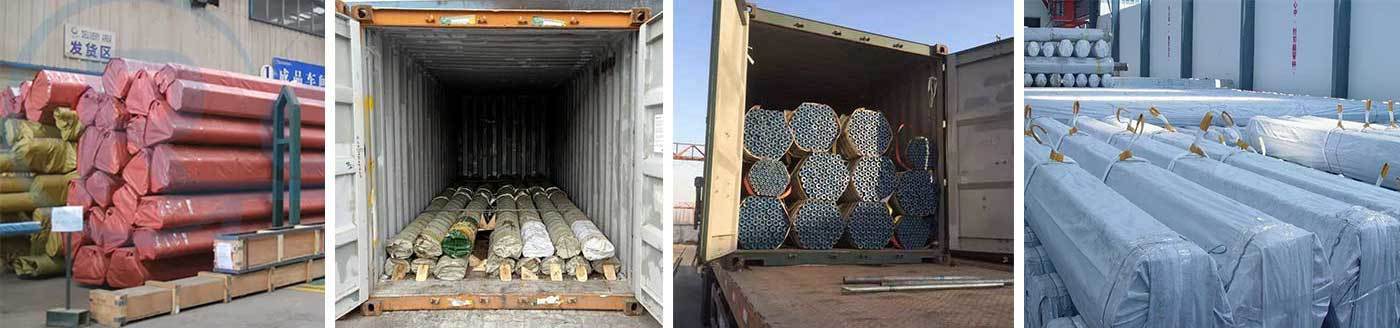

Packing and shipping

We have our own transportation fleet with the most convenient transportation and timely delivery.The company's products are exported to more than 70 countries and regions in the world, including Europe, America, Germany, South Korea, Indonesia, Bangladesh, etc.

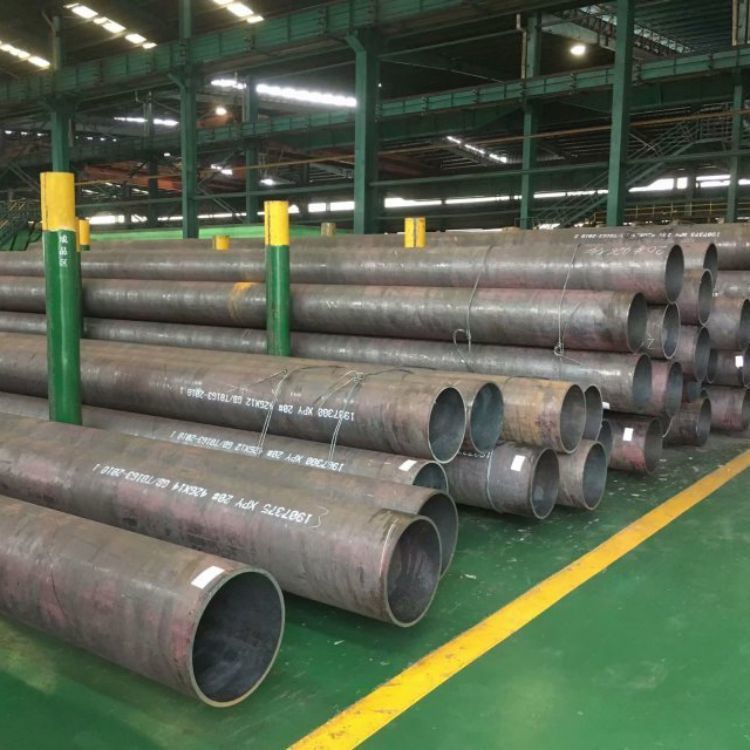

Factory appearance

It is a specialized manufacturer and seller of carbon steel, steel bars, stainless steel, galvanized, hot-rolled seamless steel pipes, precision seamless steel pipes, cold drawn seamless steel pipes, alloy pipes, special-shaped pipes, etc.

Application areas

Its products are suitable for various fields such as automobiles, motorcycles, power, machinery, hydraulic accessories, bearings, pneumatic components, oil cylinders, coal mines, conveyors, boiler equipment, pipelines, engineering, etc. Our company has 5 perforation units, 30 precision rolling machines, and 6 cold drawing machines.
